MOOG P-I Servo Amplifier G122-824

Description

The G122-824 P-I Servoamplifier is used in closed loop applications where a proportional and/or integral amplifier is needed. Selector switches inside the amplifier enable proportional, integral or both to be selected. Many aspects of the amplifier’s characteristics can be selected with internal switches. This enables one amplifier to be used in many different applications. The configuration options provided are the result of many years of experience in designing and commissioning closed loop systems.

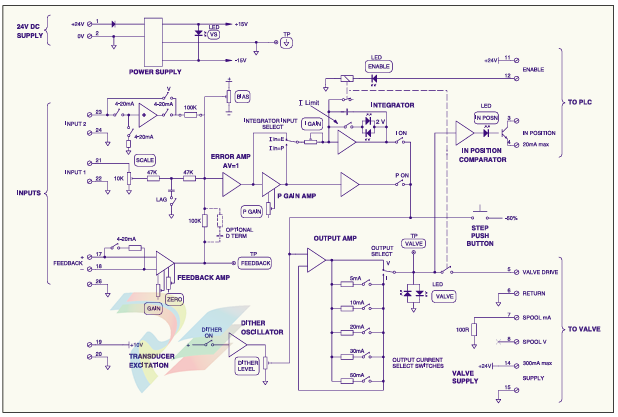

The Servoamplifier employs analog electronics. It accepts three input signals, two single ended and one differential.

These are summed to produce an error signal which is then amplified proportionally and also integrated. The proportional and integral signals are switched together and output as a current or voltage to drive a servovalve.

Front panel trim pots, LED indicators and test points allow fast and easy setup and aid in trouble shooting. The servoamplifier is housed in a compact DIN rail mounting enclosure and requires a +24V supply.

 Features

 P, I or P & I control

 User friendly front panel with LEDs and test points

 Single ended input, 4-20 mA or ±10 V, switch selectable

 Single ended input, scalable

 Differential input with zero and gain

 Feedback transducer excitation output

 Step push button

 Optional feedback derivative term

 “In position” output

 Dither

 Enable input

 Compact DIN rail housing

 CE marked

Switch selections

Input 1 lag on or off

Feedback input 4-20 mA or ±10 V

Input 2 4-20 mA or ±10 V

Proportional control, integral control or both

Integrator input from unity gain or amplified error signal

Integrator limit

Output current or voltage

Output current level

Dither on or off

Plug-in resistors

Input 2 = 100k for ±10 V

Feedback derivative term = not loaded

Proportional gain range = 100k for 1 to 20 range

Input 2 direct to output amp = not loaded

Ordering Information

P-I Servoamplifier G122-824-002

Special configurations can be provided. Consult your Moog sales office to discuss details.

The G122-824-002 is a functional replacement for the -001 version. It adds a 4-20 mA option for input 2. output step push button and  improved thermal performance.

Operating Details
