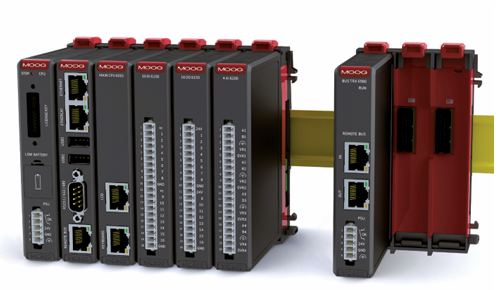

Moog Machine Controller (MC Series 600)

In the new Moog Machine Controller (MC Series 600), Moog experts haveincorporated over

30 years experience in leading-edge technology into a flexibleand modular solution for high

performance industrial machinery. The hardware iscomplemented by the Moog Application

Software Suite, a powerful yet easy-to-use tool for developing application programs based

on CoDeSys, the proven IEC61131-3 compliant programming system.

The MC Series 600 product family includes CPU, 1/0 and communicationsmodules, as well as

local and PC-based HMI units. The multitasking Linux-basedreal-time operating system

guarantees fast reaction and reduced cycle times,providing efficiency and productivity

enhancements. Analog 16 bit I/0 resolutionoffers greater precision positioning and higher

accuracy.

Designed specifically to combine flexibility with ease of use, MC Series 600controllers are

simple to configure and modular in design. While the MC Series600 is suitable for a wide

variety of industrial applications, software templatesfor blow and injection molding and the

incorporation of integral functions suchas temperature and parison profile control, make it

an ideal choice for plasticsmolding applications.

ADVANTAGES

· Higher machine flexibility thanks tomodular hardware design, easy-to-useapplication

templates for mouldingcontrol

· Greater precision, faster reaction timeand better accuracy due to leading-leading-edge

system design

· Free choice of centralized ordecentralized architectures withoutany application software

modifications

· CoDeSys integrated environment withspecial function blocks

· Robust construction suitability for usein demanding environments

· Availability of Moog applicationexperts ensures solutions that meetmachines' requirements

APPLICATIONS

· General industrial machine control,especially where requirements includefast cycle time,

high precision andmaximum flexibility

· Plastics machines

· Special machines

· Packaging machines

· Metal forming machines

KEY FEATURES

· Distributed architecture with highperformance due to high speedserialized buses and the

ability toexpand easily by adding CPUs with 1/0resources as needed

· Analog functions with high resolutionallow accurate control and positioning Modular design

with capacity for up to2.000 1/0 means that the controllerscan be optimally configured to

suitapplications of all sizes

· Real time Linux-based operating systemcombines true multitasking with fastresponse times

and the ability to easilyadd PC-like features

· Standardized development environmentthat incorporates debugging, simulation,parameterization

and tracingcapabilities makes programming andtesting fast and straightforward

· Use of standard CAT5E cabling, withsegment lengths of up to 50m [164 ft),for the connection

of remote modulessimplifies wiring and reduces installationcosts and time

· Templates library for fast applicationsoftware development

· Fuzzy logic temperature control
