ABB MNS iS design aspects Incoming feeders and bus couplers

From:ABB | author:Mr.Chen | Time :2024-12-30 | 109 view: | Share:

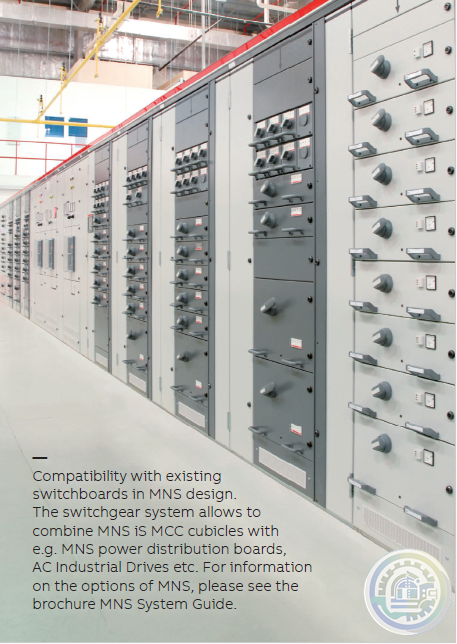

MNS incoming solutions are verified by testing in

accordance with IEC 61439 series, in addition to

IEC 60947-1 required for the individual apparatus,

and engineered to meet the requirements of

IEC 61641. This ensures ABB’s offering of ‘Proven

Safety Plus’ for operators and plant.

Incoming options

All ACBs have as a minimum the following

features:

• Manual charging lever and ‘charged’ indication

• Manual open/close push buttons

• Mechanical ‘open’/’closed’ indication

• Mechanical signalling of ‘overcurrent’ release

• 4 auxiliary contacts

Project specific options

• Gas sealed connections to the main busbars

(separation wall)

• 3 or 4 pole solutions

• Withdrawable/fixed configuration

• Top or bottom cable entry/bus duct

• 50% or 100% neutral

• Shunt opening/closing release

• Undervoltage release

• Electrical signalisation of ACB status

• Key locking facilities

• Shutter locking facilities

• Mechanical indication ‘racked in’/’racked

out’/’test isolated’ position

• Locking in racked in/racked out/test

isolated position

• Switch disconnector option

• ACB handling truck

• Configuration and test unit

ABB’s electronic releases of PR series offer a

variety of programmable protection functions for

all mentioned circuit breaker types:

• Overload protection L

• Selective short circuit protection S

• Instantaneous short circuit protection I

• Earthfault protection G

Further options available (but not limited to):

• Zone selectivity

• Dual protection settings

• Directional short circuit protection

• Reverse power

• Under-/overvoltage protection

• Annunciation of measured values, alarms

• Maintenance data

• Integration into a plant wide process

control system

In order to satisfy other incomer requirements

there are further options:

• Load break switches

• Moulded case circuit breakers (MCCBs)
