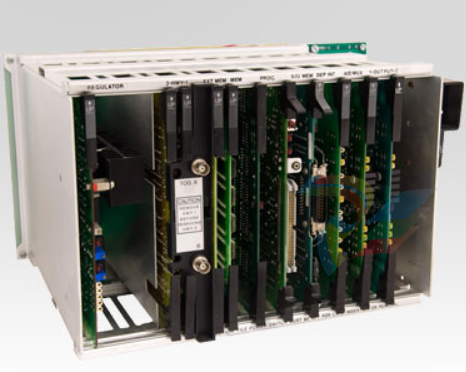

Honeywell TDC2000 TDC3000 General Purpose Control Networks

From:Honeywell | author:Mr.Chen | Time :2024-07-19 | 566 view: | Share:

to all interested parties via the plant network. You no longer need operators or engineers to manually read printed reports, perform additional calculations, and then create new

reports. In addition, all data can be automatically populated into Excel spreadsheets, automating data manipulation, analysis and distribution.

Q:What kind of new control will I have when I migrate to Experion?

A: Experion offers improved control capabilities such as model-based control, integrated loops, and logic capabilities for improved process discipline control.

Control. Cross-cell control is implemented in easy-to-use software rather than the hard-wiring between controllers that was required in the past.

Q: Can I simply ‘copy’ an existing control scheme to Experion without making any changes?

A: The Control Match service allows for simple copying of controls from an existing system to Experion. all point types and standard algorithms of Basic Controller can be easily migrated.

Q:How fast is the physical migration of a plant/plant site to a new controller?

Answer:Typical time for a physical migration to occur is 2 to 4 hours, and even less for migrating smaller systems. There are two reasons for the short downtime. First

First, the migration kit is a plug-and-play design. Simply disconnect the cables, remove a few screws on each component, install new components, and

connect or reconnect the cables, and you are done with the physical operation. The second reason is that L/O checkout can be quite efficient. All existing

existing L/O and cables were functioning properly prior to migration, and the new cables and assemblies were tested and verified at the factory prior to shipment.

Q: I have limited space available, so do I need additional cabinet space to install the new Experion controller?

A: In most cases, the new control system can be installed into an existing TDC2000 cabinet.

Q:Are there calibration and test points for ongoing maintenance?

A:Yes, calibration and test points are provided.

Q:Are there any active components on the migration kit such as CPU and network?

Answer:numberAll signal matching migration hardware is created using passive components. This greatly increases reliability and longevity and reduces the number of possible failure paths.
