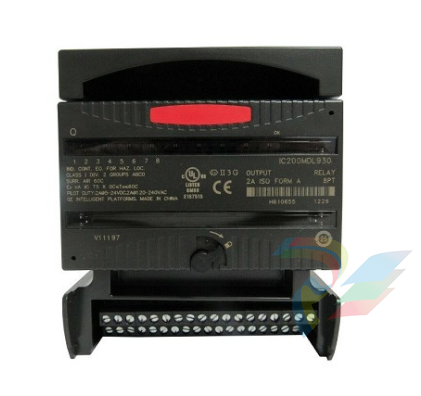

GE IC200MDL930 8-Point Relay Output Module for VersaMax I/O Series

From:GE | author:Mr.Chen | Time :2024-07-26 | 114 view: | Share:

Description.

The IC200MDL930 is an 8-point relay output module for the VersaMax I/O series, formerly manufactured by GE Intelligent Platforms and now part of Emerson Automation.

The module has eight (8) individually isolated normally open (N.O.) or type A contacts rated for 0 to 125VDC, 5/24/125VDC nominal output voltage and 0 to 265VAC (47 to 63Hz),

120/240VAC nominal output voltages and output contacts rated at 2.0 amps.

About the IC200MDL930

The IC200MDL930 is an eight (8) channel output module that is part of the VersaMax I/O platform.

Formerly offered by GE Intelligent Platforms (GE IP), it is now part of Emerson Automation.

The module is equipped with individually isolated relay output channels in normally open (N.O.) or form A contact positions.

The inbuilt relays of the module are of fixed coil, moving armature type with relay contacts made of silver alloy.

These contact outputs are suitable for energising electrical loads operating at different voltage categories, in particular at AC voltage frequencies from 47 to 63 Hz, 0 to 125 VDC and 0 to 265 VAC.

The IC200MDL930 contact output is essentially a dry contact output. It requires an external supply voltage source to conduct the proper voltage to the connected electrical load.

It can be used for resistive or conductive loads, but it is recommended that conductive loads, external protection or suppression circuits (such as fuses) be installed.

Output contacts are rated at a minimum of 10mA per point; 2.0A for 5 to 265 VAC, max; 2.0A at 5 to 30 VDC, 0.2A at 31 to 125 VDC, max.

All current ratings are resistive load ratings. In addition, the nominal external supply voltage ratings for the contact outputs are 5/24/125 VDC and 120/240 VAC.

The IC200MDL930 has a maximum backplane current consumption of 245 mA when all outputs are energised.

The module is equipped with a separate channel indicator to describe the energised state of each output channel.

It also has a separate module OK LED indicator to indicate the active power received by the module from the backplane power supply.

The IC200MDL930 module is an 8-point output module manufactured by GE Fanuc. It is part of the Versamax family.

The output points of the module are individually isolated. The output module draws 245 mA of power from the baseboard with all outputs active.

The IC200MDL930 module is fully compatible with AC and DC loads. Each of the module's eight points has its own LED indicating field power through those points.

The module contacts are closed by default during module activation. At this time the output bit is set to 1. The module is easy to install when using the rack mounting method on a baseboard.

The output module is certified to CE, cULus and other industry standards. It is used for global settings.

The IC200MDL930 output module is an intelligent device that performs faster processing than other similar modules.

This output module has no output leakage current. Each point relay is designed with a fixed coil and an armature.

The on/off response time is slower than other Versamax modules at 10 milliseconds. The module has an inductive load switching frequency of 20 cycles per minute.

There are no internal fuses or snubbers in this output module variant.

The IC200MDL930 module is cooled by forced air cooling to maintain its ambient temperature between 0 and 30 degrees Celsius.

Thermal derating begins when the ambient temperature exceeds the maximum temperature rating.

IC200MDL930 Frequently Asked Questions

1. What is the type of relay embedded in this module?

The IC200MDL930 has a fixed coil, moving armature relay.

2. What is the backplane current consumption of IC200MDL930?

The maximum backplane current consumption of IC200MDL930 is 245 mA when all relays are activated.

3. Does the IC200MDL930 come with separate isolated output channels?

Yes. The IC200MDL930 has separately isolated output channels with isolation ratings of 250 VAC continuous; 1500 VAC for 1 minute.

IC200MDL930 Technical Description

The IC200MDL930 module is GE Fanuc's 8-point output module in the Versamax series. All points are individually isolated.
