Hitachi Energy FOX615 Key highlights

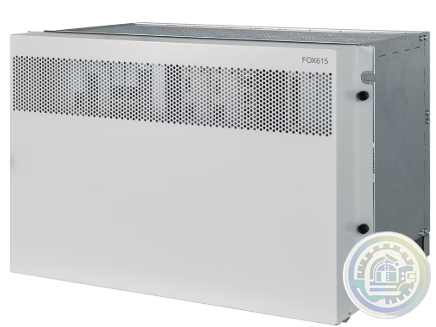

Hitachi Energy's FOX615 is an outstanding multi-service multiplexer which enables

the extension of existing communication infrastructure, as well as the smooth

migration to future technology.

Key highlights

• Easy and flexible way to migrate technology in a utility network

• With its latest IEC61850 interface the FOX615 also acts as a substation IED

• Enables GOOSE based protection applications of digital substations

WAN modernization: An outstanding multiservice platform for real-time utility communication

Hitachi Energy's FOX615 is a hybrid solution supporting traditional TDM (PDH / SDH) and

Multi-Protocol Label Switching - Transport Profile (MPLS-TP) – the latest standard designed

to address the new applications using packet-switched technology natively. The majority of

existing communication networks of power utilities are based on Time Division Multiplexing,

TDM, which allocates dedicated circuits to specific communications and thus guaranteeing

the required communication performance parameters such as bandwidth, latency, and symmetry.

New standards today are based on packet-switched technologies (e.g. IEC 60870-5-104 or IEC 61850)

and therefore integrate natively into a packet-switched MPLS backbone network.

Well known features of SDH networks were left behind when MPLS was originally created for

dynamic public telecommunication networks and implemented as IP/MPLS. That’s why an

enhancement of the standard was required, leading to MPLS-TP bringing back those missing

features from SDH to the MPLS world such as bidirectional and static channel routing or end

to end channel supervision using Operational Administration Maintenance (OAM).

FOX615 provides native MPLS-TP and SDH functionality as part of the hybrid approach implemented.

The combination of state of the art SDH technology and future MPLS-TP technology provides an easy

and flexible way to migrate technology in a utility network. All FOX615’s which are deployed in the

field today can easily be upgraded to MPLS-TP. It also allows the parallel implementation of SDH

and MPLS-TP in one node, separating traffic according to their performance requirements.

One further option is to just implement a pure MPLS-TP node. FOX615 today offers much more

to a utility than any other multiservice platform for real-time utility communications.
