Eaton F30 Ex ic Adaptor Accessory for F300 range of Megablock Wiring Hubs

• Use with F300 range of Megablocks and 918x-x2 range of fieldbus power

supplies to provide Ex ic intrinsically safe spurs for FOUNDATIONTM

Fieldbus networks

•  Allows spurs to be live-worked in Zone 2 when connected to suitably

certified field instruments

•  Compatible with FISCO and Entity certified fieldbus devices

•  Installs with Megablock in field junction box

•  Supports long trunk cable lengths and heavily loaded fieldbus segments

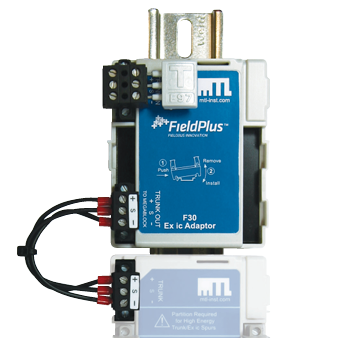

The F30 Ex ic Adaptor is an accessory to F300 range of

Megablock wiring hubs, and provides intrinsically safe Ex ic

spur connections for fieldbus networks in Zone 2 hazardous

areas. One F30 is used with each Megablock, to limit the

voltage at the spurs to Ex ic levels. When connected to suitably

certified fieldbus instruments, the spurs may be live-worked in

accordance with normal intrinsic safety procedures. The F30 is

completely transparent to all fieldbus communications.

The F30 is compatible with F304. F308 and F312 Megablock

types, typically providing up to 12 Ex ic spurs per fieldbus

segment. Up to two F30s and their associated Megablocks

may be connected to a single segment, to allow the fieldbus

trunk to be extended between junction boxes in the field.

The spurs are compatible with FISCO and Entity certified

fieldbus instruments. Where FISCO instruments are selected,

cable parameter calculations are not required.

To comply with intrinsic safety requirements, each fieldbus

segment must be powered by a 918x-x2 fieldbus power

supply, fitted with 9192-FP power modules.

Ex ic replaces the earlier Ex nL technique for energy-limited

fieldbus networks, and brings the technique into line with

formal intrinsic safety procedures.

A key benefit of the MTL Ex ic spur solution is that the

fieldbus power supply has a higher output voltage than

competing products, allowing longer trunk cable lengths and

more fieldbus instruments per segment. Requirements for

ensuring compatibility with major host control systems are

also simplified.

The F30 is designed for installation in the field enclosure

together with the Megablock wiring hub. A full range of

compatible stainless steel and glass reinforced polyester

(GRP) enclosures are available.
