Eaton F200-IS megablock range MTL intrinsically safe fieldbus device couplers

OVERVIEW

F200-IS Megablocks are DIN-rail mounted, device couplers for FOUNDATION™ fieldbus

or Profibus PA networks. They allow connection of field devices to the segment trunk

cable and provide short-circuit protection to the segment.

Megablocks minimize hand wiring and allow individual devices to be added to and

removed from the segment without disrupting network communication.

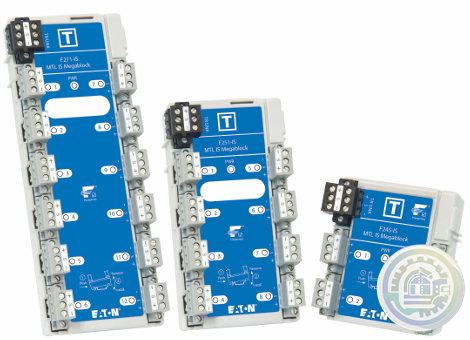

Megablocks are available in four, eight, and twelve port versions. Multiple Megablocks

are easily wired together to allow larger segments to be constructed.

Individual surge-protector modules (FS32) can also be fitted to any of the Megablock

fieldbus terminals to provide protection against induced surges and transients that can

potentially destroy or degrade certain components inside the F200-IS Megablocks.

DESCRIPTION

Simple and reliable interconnection

Each Megablock has dedicated connections for the fieldbus “home run” or trunk

cable. Trunk connections are identified by their black connector. Numbered (grey)

connectors are provided for each spur.

Wiring connections to the Megablock are made using pluggable connectors (screw

terminal type are standard, but other connection styles are available). These allow

wire terminations to be made to the individual connectors, which are then plugged

into the Megablock.  Devices can be connected and disconnected easily during

commissioning. On completion, the connector retaining screws are tightened to

secure each connector to the Megablock.

MECHANICAL

Mounting orientation

Megablocks mount vertically or horizontally on 35mm DIN rail within a field junction

box.  The use of DIN rail end stops are recommended to prevent sliding (especially

for vertical installations).

Eight, and twelve port Megablocks have areas on their body for labelling so that

segments can be easily identified according to plant standards.

Enclosure requirements

General requirements

Megablocks may be mounted in hazardous (classified) areas – see sections 8 & 9.

The following conditions must also be satisfied to ensure safe and reliable operation.

a) Prevent any form of pollution that could compromise the operation of the unit.

For example, choose an unpolluted location or a suitable enclosure to protect the

assembly.

b) Provide an adequate level of mechanical protection. This can be achieved by

selecting a protected location, a suitable enclosure, or a combination of both.

c) Ensure that all cable entries and connections are secure by making provision for

the careful routing and securing of all cables.

d) Provide adequate security against unauthorized interference.

e) Conform to the permitted ambient temperature range of –50°C to +70°C.

Outdoor mounting

In addition to the General Requirements above, if the Megablock is mounted in an

outdoor location, use a suitable enclosure with a minimum of IP54 ingress protection.

A higher level of ingress protection rating will be necessary if the working atmosphere

is, or can be, corrosive, or if the enclosure is subject to wet or dusty environments.

DIN-rail mounting

The Megablocks are designed for mounting on 35mm x 7.5mm T-section “top hat”

DIN rail to EN50022 and use built-in DIN rail clips to attach to the rail.

Mounting procedure

Megablocks are attached to the DIN rail using a “push-and-tilt” method - as illustrated

on the body label and in Figure 4.1 below.

Tilt the Megablock towards the trunk-connector side of the Megablock and then

engage the DIN-rail clips under the ledge of the DIN rail. Push the Megablock against

the edge of the rail then rotate the Megablock until it sits flat onto the DIN rail, then

release the pressure to allow the clips on the other side to engage.

Removal from DIN-rail

Refering to Figure 4.1. push the Megablock against the edge of the DIN rail, tilt the

other side of the Megablock up and away from the DIN rail, then release the side

pressure to disengage the DIN rail clips from the DIN rail ledge.
