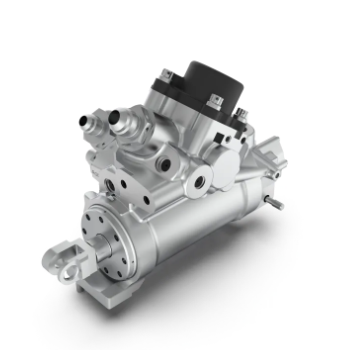

Woodward Engine Actuators

Woodward’s actuator platform provides the aircraft industry with a very high reliability at a low cost.

Innovations in design arrangement, materials, surface finishes and sensor integration

provide excellent feature density at a low weight.

Features & Functionality

Woodward’s unique design is both scalable and modular, so it can be quickly applied

to compressor vane, bleed air, air valve and oil applications.

Further system level savings can be achieved by higher-LRU integration and analysis,

leading to integrated servo-actuator solutions and open loop proportional designs.

Regardless of the configuration, let our leak-tight performance provide you

with years of worry-free and on-demand service within the toughest environments.

Key Product Variants Include

• Wide variety of servo, sensor and open loop integration features for

a varying degree of performance-to-cost requirements.

• Reuse of scalable platforms to reduce risk, cut costs and boost reliability.

• Proven field experience beyond 300.000 hours MTBF.

Key Features

• Leverage of decades of reliable pedigree in fueldraulic actuators,

electro-mechanical actuators, air valves, specialty valves, servo controls and position sensors.

• Unique ability to determine optimum architectures and actuator placement based on customer-driven requirements.

• Systems level performance and accuracy stacks that include sensor effects over life and signal demodulation errors.

• Leverage of standard designs to greatly minimize non-recurring development and recurring costs.
