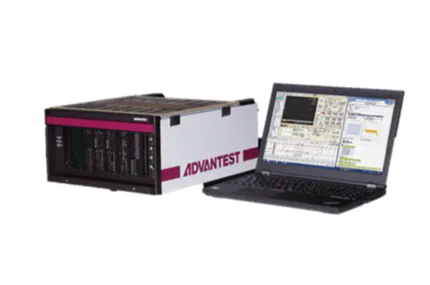

Advantest The EVA100 automatically creates graphs of DUT characteristics

Main Functions

Characteristics Evaluation

4 channels high frequency sampling digitizer to observe and measure transient

response waveforms or behavior of device under test(DUT).

Productivity Evaluation

The EVA100 automatically creates graphs of DUT characteristics and generates

HTML-format reports on measurement conditions and results, freeing users from

taking notes on each item to be evaluated. Files can be copied and downloaded in

CSV format, making it easier and quicker to create device evaluation reports

Functional Evaluation

The EVA100 automatically creates graphs of DUT characteristics and generates

HTML-format reports on measurement conditions and results, freeing users from

taking notes on each item to be evaluated. Files can be copied and downloaded in

CSV format, making it easier and quicker to create device evaluation reports

■ Documentation (Report Generator)

Sequence Editor makes it easy to synchronize multiple hardware channels based

on how the user determines when events occur. The Sequence Editor also supports

continuous measurement or conditional loop settings enabling greater control of

automated measurements. .

I2C, SPI, and JTAG I/F are supported by protocol based control. By preparing

the Register Map, we can use the register name for digital patterns instead of

mnemonics so that Register Map gives you a clear overview for the digital pattern

and improve the readability and efficiency of digital pattern debug.

Production Test

The EVA100 supports parallel measurement for production test. Users need only

set up connections to the desired number of DUTs to begin testing multiple

devices. The ability to use test sequences developed in the design phase also

reduces the number of processes required.
