Beckhoff EL1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms

From:Beckhoff | author:Mr.Chen | Time :2026-06-03 | 3 view: | 🔊 Click to read aloud ❚❚ ▶ | Share:

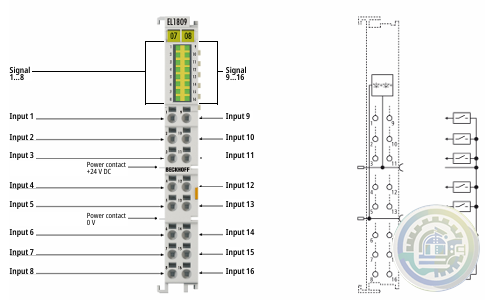

The EL1809 digital input terminal acquires the binary 24 V control

signals from the process level and transmits them, in an electrically

isolated form, to the higher-level automation unit. The EtherCAT

Terminal has 16 channels, whose signal states are indicated by LEDs.

The power contacts are connected through. With the EL1809.

the reference ground for all inputs is the 0 V power

contact.

Special features:

• input specification type 1/3

• no bouncing due to mechanical switches thanks to 3 ms input filter

• tool-free connection by direct plug-in technique for solid wire

conductors

• space-saving use in the control cabinet

• direct connection of multi-channel sensors in 1-wire connection

technology in the smallest space

• increased packing density with 16 connection points in the housing

of a 12 mm terminal block
