Beckhoff EL1262-0010 | EtherCAT Terminal, 2-channel digital input + 2-channel digital output

The EL1262-0010 is a universal, high-performance oversampling terminal for

input and output signals. It contains two input and two output channels that

can all be operated simultaneously at up to 10 Mbit/s. It can thus resolve

binary states with up to 100 ns fineness. Electrically it can read and output

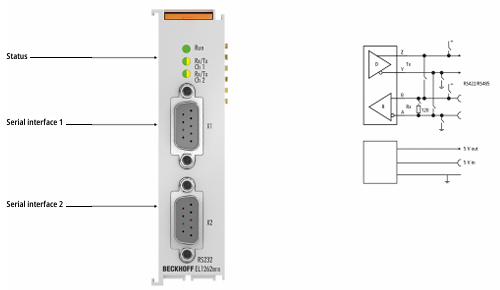

differential RS422 (full duplex), RS485 (half duplex) as well as 5 V single-ended.

Termination and bias are electronically switchable for serial operation.

This makes it suitable for the most demanding high-speed applications, e.g.

laser control or the emulation and read-along of serial protocols.

It thus extends the application range of the previous EL1262/EL2262 with

1 Mbit/s by a factor of 10.

The signals are sampled with a configurable, integer multiple (oversampling

factor: n) of the bus cycle frequency (n microcycles per bus cycle).

For each bus cycle, the EtherCAT Terminal generates a process data block

that is transferred collectively during the next bus cycle.

The timebase of the terminal can be synchronized precisely with other

EtherCAT devices via distributed clocks. This XFC procedure enables the

temporal resolution of the digital input signals to be increased to n times

the bus cycle time.

Special features:

• suitable for particularly fast signals due to very low input delay

• synchronized operation through distributed clocks XFC technology possible

• multiple sampling of a process data through oversampling
