Moog Downhole Motor Controllers

Ruggedized design built to reliably operate in the most extreme environments

HIGH PERFORMANCE MOTOR CONTROLLERS

IN A COMPACT PACKAGE

Moog is a leader in motion control technology and has provided innovative

products and solutions for a wide range of industries for more than 65 years,

including 35 years serving the oil & gas industry. We meet our customers‘ needs

through ruggedized products and by delivering fast, responsive global support.

The Moog Downhole Motor Controllers are designed for high performance,

high temperature environments such as downhole drilling which demand

exceptionally narrow package diameters. The single axis controller is a closed

loop control solution for velocity and position control that complements our

Downhole Brushless Servo Motors and Servo Actuators. A low current draw in

standby mode maximizes operating time in battery powered applications.

For a complete solution, the software and graphical user interface (GUI) are

engineered to expedite the design and test of your product while providing the

flexibility to support your application specific requirements. Diagnostic data,

accessible via the RS485 serial interface, enables health/life monitoring based

on time and temperature in operation.

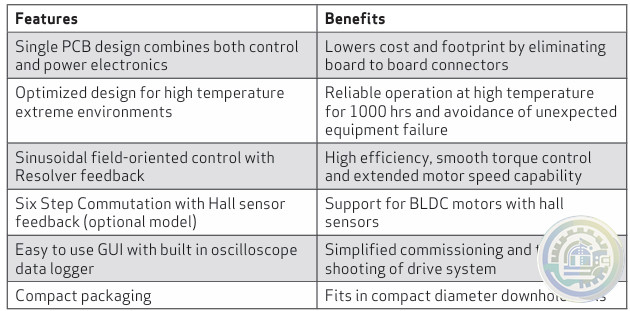

ADVANTAGES

• Tested with Moog downhole motors and actuators to provide a complete

motion control solution

• User friendly GUI tools:

- Data Logging & Oscilloscope up to 4 channels

- Editable Parameter Database

- Status and Fault Indication

- Function Generator

- Event Logger

APPLICATIONS

• MWD/LWD

• Rotary Steerable Tools

• Completion Tools

• Tractor Tools

• Pump Applications/Control

• Formation Testing

MOOG GLOBAL SUPPORT

Moog Global Support is our promise to offer world-class Repair and Maintenance

Services with the reliability only available from a leading manufacturer with facilities

around the world. Count on Moog to keep your equipment operating as it should.
