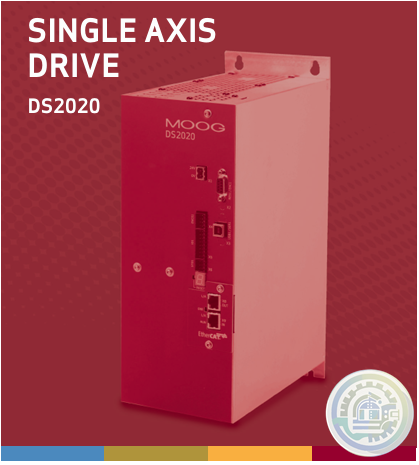

MOOG DS2020 Digital Single-Axis Servo Drive

EXTREMELY COMPACT, SINGLE-AXIS, STAND-ALONE DRIVES FOR

HIGH ACCURACY AND FLEXIBILITY

The DS2020 is the single-axis, stand-alone, new servo drive,

specifically designed with extremely compact dimensions for

significant space saving.  Available in six sizes, from 2 to 192

Arms, continuous, and 4 to 384 A, peak, the DS2020 can be

easily tailored to meet any application requirement with different

motor and load position tranducer and fieldbus interfaces.

SYSTEM OVERVIEW

Highly compact, modular design for top  productivity

• The DS2020 is a digital “stand-alone” servodrive,  purposely

designed with ultra compact  dimensions.  The current sizes

of the five versions (50. 75. 85. 125  165 and 355 mm) range

from 2 Arms to 192 Arms  continuous, and from 4 Arms to

384 Arms peak.

Designed to work with different motor types and

feedback devices

• The DS2020 servodrive is designed to control  synchronous

brushless or asynchronous motors (it is  compatible with

various feedback systems (Resolver  standard, encoder

single and multi-turn, incremental)  as well as motors with

sensorless algorithms.

User-friendly Graphic User Interface (GUI)

• The graphic user interface offers easy access to all  the drive

functions, simplifying the settings, initial  start-up and

system monitoring. Communication  with the PC is via a USB

or RS422 interface.

Integrated Safe Torque Off (STO) function

• The Safe Torque Off safety function is integrated as

standard in every drive.

Applications

• Single-axis applications in industrial automation

• Applications with high precision and top dynamics

• Applications requiring significant space saving during

installation

• Applications with personalised functions and flexible

configurations

• Applications requiring quick, precise movements

Features

• The extremely compact design allows machine builders to

reduce cabinet space and consistently cut layout installation

costs

• Maximum flexibility to work with different motor types,

different motor and load position tranducer and fieldbus to

meet all applications requirements

• Its user-friendly graphic interface (DX2020GUI) allows easy

access to all functions, simplifying the commissioning, the

machine start-up and system monitoring

Markets

• Industrial Production Machinery

• Metal Forming Machinery

• Injection and Blow-molding Machines

• Simulation

• Gas and Steam Turbines

• Packaging and Food Processing Machines
