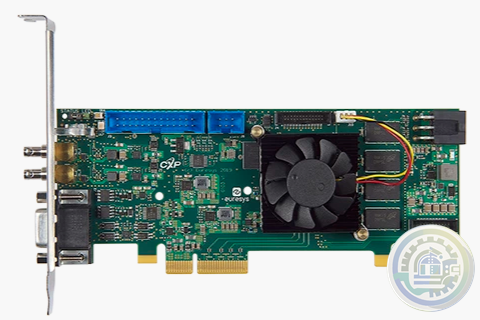

Euresys Coaxlink Duo CXP-12

Highlights

Acquire images from the fastest and highest resolution cameras

Highest data acquisition rate in the industry

Up to 5.000 MB/s bandwidth from camera to host PC memory

Main benefits

• Low-profile PCle card

• Delivered with standard and low-profile brackets

• PCle 3.0 (Gen 3) x4 bus

• 3.300 MB/s sustained bus bandwidth

Long cable support

- 40 meters at CXP-12 speed (12.5 Gbps)

- 72 meters at CXP-6 speed (6.25 Gbps)

- 100 meters at CXP-3 speed (3 Gbps)

Power over CoaXPress

• Feed your camera up to 17 W per channelunder 24 VDC with automatic devicedetection, measurement and overloadprotection.

• Total and per-channel voltage and currentmeasurement is possible, allowing validationand performance deviation monitoring.

Use standard coaxialcables

• A single inexpensive cable for data transfer,camera control, trigger and power supply

• Top reliability and flexibility, performs in theharshestenvironments

Micro-BNC (HD-BNCTM)connectors for reliableconnection

• Trusted push and turn, bayonet-style positive lock

• Allows for quick and easy connects anddisconnects

Line-scan triggeringcapabilities

Euresys' frame grabbers offer many capabilities tosynchronize line-scan or 1D cameras, sensors andlighting controllers.

Frame grabbers can controlthe camera scanning rate based on the signalsreceived from a motion encoder.

They support continuous web scanning (toinspect infinite, continuously moving surfaceswithout losing a single line) and

discrete objectscanning (to acquire the image of objects movingin front of the camera).
