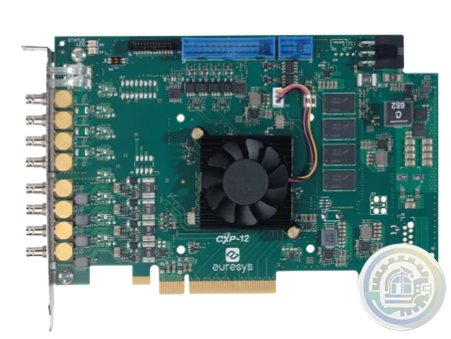

Euresys Coaxlink Quad CXP-12 DF Benefits

At a Glance

 •Four CoaXPress CXP-12 connections and four Data Forwarding outputs: 5,000 MB/s camera bandwidth

 •PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth

 •Feature-rich set of 10 digital I/O lines

 •Extensive camera control functions

 •Memento Event Logging Tool

Benefits

 CoaXPress Data Forwarding

•Allows to distribute the image processing workload among several host PCs

 PCIe 3.0 (Gen 3) x8 bus

 •7,800 MB/s peak bus bandwidth

 •6,700 MB/s sustained bus bandwidth

 Acquire images from the fastest and highest resolution cameras

 •Highest data acquisition rate in the industry

 •50 Gbit/s (5,000 MB/s) bandwidth from camera to host PC memory

 Power over CoaXPress

 •Power over CoaXPress : Feed your camera up to 17 W per channel under 24 VDC with automatic device detection,

measurement and overload protection.

 •Total and per-channel voltage and current measurement is possible, allowing validation and performance deviation monitoring.

 Long cable support

 •40 meters at CXP-12 speed (12.5 Gbps)

•72 meters at CXP-6 speed (6.25 Gbps)

•100 meters at CXP-3 speed (3 Gbps)

 Use standard coaxial cables

 •A single inexpensive cable for data transfer, camera control, trigger and power supply

 •Top reliability and flexibility, performs in the harshest environments

 Micro-BNC (HD-BNC™) connectors for reliable connection

 • Trusted push and turn, bayonet-style positive lock

 • Allows for quick and easy connects and disconnects

 Memento Event Logging Tool

 • Memento is an advanced development and debugging tool available for Coaxlink and Grablink cards.

 • Memento records an accurate log of all the events related to the camera, the frame grabber and its driver as well as the application.

 • It provides the developer with a precise timeline of time-stamped events, along with context information and logic analyzer view.

 • It provides valuable assistance during application development and debugging, as well as during machine operation.
