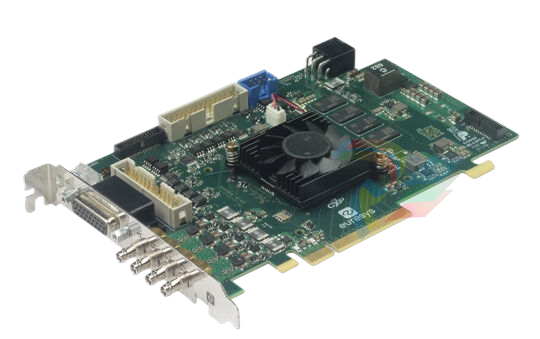

Euresys Coaxlink Quad CXP-12 Value

Memento Event Logging Tool

- Memento is an advanced development and debugging tool for Coaxlink and Grablink cards.

- Memento records an accurate log of all events related to the camera, the frame grabber card and its driver, and the application.

- For times containing timestamps, it provides developers with accurate timelines, as well as contextual information and logic analyser views.

- It can provide valuable collaboration during application development and debugging, as well as during machine operation.

Direct GPU Transfer

- Sample programs are available for AMD DirectGMA and NVIDIA (CUDA).

- GPU Direct Transfer eliminates unnecessary copies of system memory, reduces CPU overhead, and decreases latency,

resulting in significant improvements in application data transfer times.

- Use AMD's DirectGMA to capture image data directly to GPU memory.

Compatible with AMD FirePro W5x00 and higher and all AMD FirePro S series products.

Universal I/O Cable

- Compatible with a wide range of sensors and motion encoders

- Eight isolated current sense inputs (up to 30V, signalling up to 200kHz, individually galvanically isolated up to 250VDC and 170VAC RMS)

- Four high-speed differential inputs (quadrature motion encoder support up to 5 MHz)

- Four isolated tactile outputs (up to 30V, 100 mA, signalling up to 100 KHz)

- Four high-speed 5V-compatible TTL inputs/LVTTL outputs (signalling up to 5 MHz)

High performance DMA (Direct Memory Access)

- Direct transfers to user-allocated memory and hardware boards displaying PCI addresses

- Hardware Dispersal - Aggregation Support

- 64-bit addressing capability
