Beckhoff CX5140 | Embedded PC with Intel Atom® E3845

The CX5140 has an Intel Atom® quad-core processor with a clock

rate of 1.91 GHz. This makes genuine multi-core technology possible

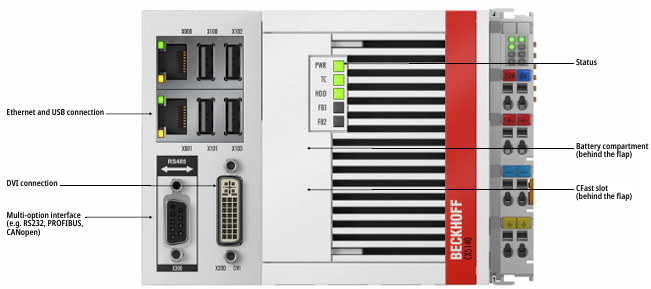

in the Embedded PC segment. The hardware interfaces in this series

are oriented and implemented identically to those of the existing

CX5000 series. Two independent, Gigabit-capable Ethernet interfaces

as well as four USB 2.0 and a DVI-I interface are available.

A multitude of further connection options and gateway functions is

created by an optional interface, which can be pre equipped ex factory,

as well as the I/O level, which can optionally consist of either E-bus or

K-bus terminals.

The CX5140 is characterized by low power consumption and fanless design.

Depending on the installed TwinCAT runtime environment, the CX5140

can be used for implementing PLC or PLC/motion control projects with

or without visualization. The execution of motion control applications

with interpolating axis movements is also possible.

Like the CX5000. the CX5100 series has a compact design; a modular

device with extension modules like in the CX2000 series is not available.
