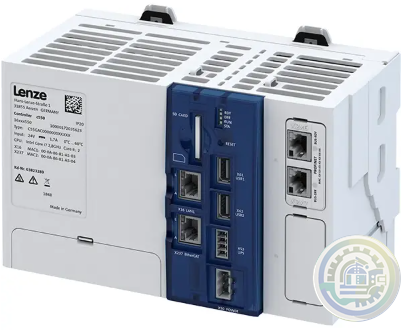

LENZE C550 Controller

c550 controller

The c550 controller enables you to conveniently solve high-end control applications,

such as printing machines with many printing units or picker lines with several robots.

Thus, modern and modular machine controls can be implemented based on our

software modules.

Highlights

• High computing power for demanding motion control in complex machines

• Maintenance-free and more resistant: The battery-free design and the extended

ambient operating temperature to 140 °F (60 °C) are the guarantors of a use in

all areas of industry

• The engineering tools are the same as for all the other Lenze products which

enables you to continue to use the tools you are familiar with

• Optional fieldbus extension

• Ready for state-of-the-art web-based machine visualizations in combination with

EASY UI Designer and v430/v450 web panel

Safety instructions

Disregarding the following basic safety measures and safety information may lead

to severe personal injury and damage to property!

Observe all specifications of the corresponding documentation supplied. This is the

precondition for safe and trouble-free operation and for obtaining the product

features specified.

Please observe the specific safety information in the other sections!

Product

Basic safety instructions

• The product must only be used as directed.

• Never commission the product in the event of visible damage.

• The product must never be technically modified.

• Never commission the product before assembly has been completed.

• The product must never be operated without required covers.

• Connect/disconnect all pluggable terminals only in de-energized condition.

• Only remove the product from the installation in the deenergized state.

Personnel

Only qualified and skilled personnel are allowed to work with the product.

IEC 60364 and/or CENELEC HD 384 define the qualifications of these persons

as follows:

• They are familiar with the installation, mounting, commissioning, and operation

of the product.

• They possess the appropriate qualifications for their tasks.

• They are familiar with all regulations for the prevention of accidents, directives,

and laws applicable at the location and are able to apply them.

Product

The product must never be technically modified!

If you carry out any technical modifications or alterations that are impermissible,

all your warranty claims will become void and the product liability will be excluded!

Device protection

• The maximum test voltage for insulation tests between a control potential of 24 V

and PE must not exceed 110 V DC (EN 61800−5−1).

Application as directed

The product is a piece of electrical equipment. The product is solely suited to be

installed in control cabinets or similar closed electrical operating areas, and to implement

control concepts, operational concepts, or to represent information in customary industrial

and commercial areas.

For the purpose of preventing injury to persons and damage to material assets,

higher-level safety systems have to be used!
