Beckhoff BK1120 | EtherCAT Bus Coupler for standard Bus Terminals

The BK1120 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the Bus Terminals. The coupler

converts the passing telegrams from Ethernet 100BASE-TX to the internal, fieldbus-independent terminal bus. A station consists of

a coupler and up to 64 Bus Terminals plus a bus end terminal. The process image of the EtherCAT system is assigned automatically.

Up to 255 Bus Terminals can be connected via the K-Bus extension.

Special features:

• Connection technology: 2 x RJ45 socket

• Connection lengths: up to 100 m

• connects the EtherCAT protocol with the Bus Terminals

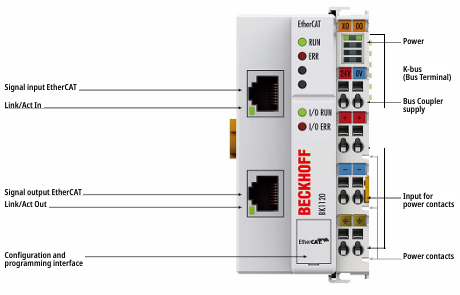

The BK1120 has two RJ45 sockets. The upper Ethernet interface is used to connect the coupler to the network; the lower socket

serves for the optional connection of further EtherCAT devices in the same segment.

The system and field supply, each 24 V DC, is provided directly at the coupler. The attached Bus Terminals are supplied with the

current required for communication from the supplied system voltage. The field supply is forwarded to the individual I/O

components via the power contacts with up to 10 A. In the EtherCAT network, the BK1120 coupler can be installed anywhere in the

Ethernet signal transfer section (100BASE-TX) – except directly at the switch. The EK9000 and EK1000 couplers are suitable for use

at the switch.
