KEBA KeTop AP500 Multi-touch panel with realtime capability

Multi-touch panel with realtime capability

The KeTop AP500 panel line offers robust gesture operation through

an industrial multitouch with integrated touchbooster for glove operation.

The RealTime Multitouch is able to transmit operator interactions in

real-time via EtherCAT or ProfiNet directly to the controller.

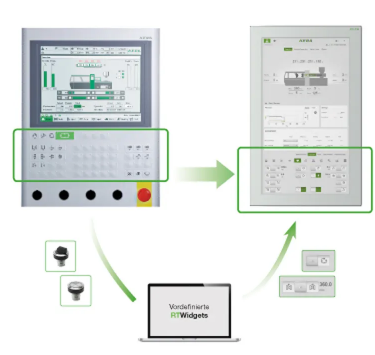

Many mechanical built-in elements and membrane keys are thus a thing

of the past. With the KeTop AP500 line, you can reduce your HMI variants

to one panel.

This gives you full flexibility in the user interface thanks to the matching

KeView Style software solution.

The Intel Atom CPU with 7 Gen Intel HD graphics acceleration makes the

KeTop AP500 panel line an optimal platform for visualization tasks.

Multitouch, gesture control and graphic effects provide a new user

experience in machine operation.

RealTime Multitouch

Controlling machines in realtime

Using the unique RealTime Multitouch and corresponding RealTime Widgets,

hand movements are reliably and directly translated into machine movements.

Thus, the realtime capability of the operating panel is also provided for without

expensive mechanical command devices.

Features

Learn more about the simple operation and innovative design of our KeTop

AP500 panel line

Operate with all of the senses

Blind operation thanks to haptic feedbackHaptic printing and the snap-dome

effect of the glass surface give the user tactileorientation, even if the user

glances away from the operating panel. Reliable operationwith full focus on

the process is thereby possible.

Haptic printing

Printed, haptic elements on the glass surface allow the user to feel his

position andprovide orientation on the display.

Force-feedback-touch

On the basis of piezo-touch technology, a perceptible pressure point including

a "clicksound" is generated. The user thereby receives an active, haptic

(and acoustic) feedbackduring interactions.

Custom design

Customizing hardware and software

Color, logo and extension panels can be adapted to meet customer

-specificrequirements. The application is easily adapted to the corporate

design using a centralstyling mechanism. The degree of customization

knows no limits.

As easy to operate as a smartphone

Rely on proven HMI components for modern user interfaces

Integrated multitouch gestures, high-performance widgets and various

graphicalpossibilities are just some of the features of the powerful HMI

framework.

The ready-made elements are simply arranged into finished visualization

masks usingdrag & drop and transferred to the panel without needing to

program a single line of code.
